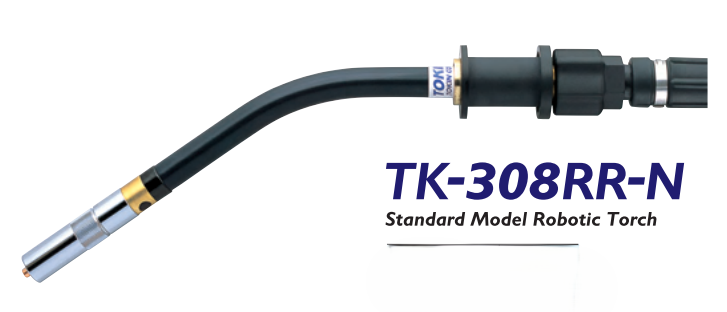

Standard Model Robotic Torch

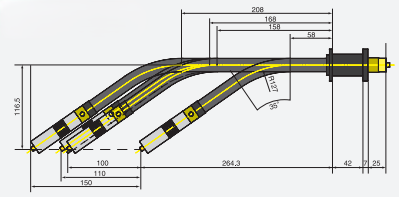

Torch body (straight section) of TK-308RR is available in various lengths as shown below. We also accept special orders for fabricating original torch bodies in different lengths of your choice.
| Torch Model | TK-308RR/S | |
|---|---|---|
| Rated Current (CO2) | A | 350 |
| Rated Current (MAG) | A | 300 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 0.8 – 1.2 |
| Cooling Method | Air-Cooled | |
| Cable Length | m | 0.8 – 5 |
| Symbol | Torch connects to : |
|---|---|
| N | YASKAWA MOTOPAC type PANASONIC type |
| D | DAIHEN direct connection type |
| DD | DAIHEN CMRE-741*1 Type |
| – | Earlier standard type *2 |
| AD | TOKIN adapter type |
| BZ | BINZEL adapter type |
| Symbol | Torch spec include: |
|---|---|
| SC | Internal shock sensor wire |
| – | None |
| Part No | Description |
|---|---|
| 016058 | TK-308RR Torch Body Assy |
| 016160 | TK-308RR Torch Body Assy (+100) |
| 016163 | TK-308RR Torch Body Assy (+110) |
| 016166 | TK-308RR Torch Body Assy (+150) |

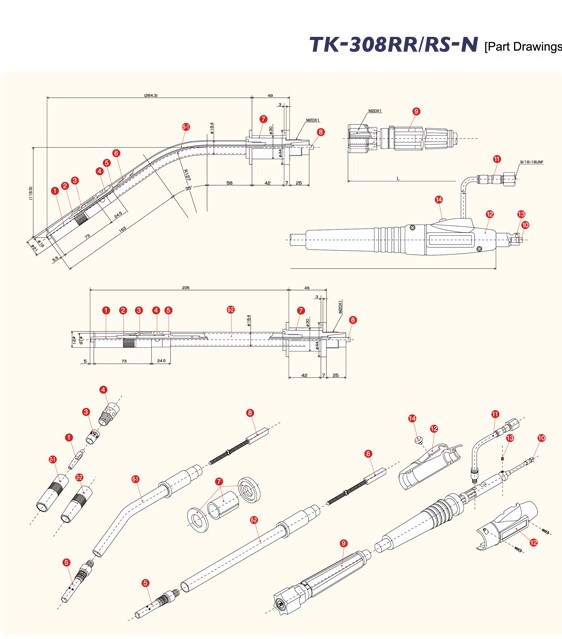

| Reference No. | Part No. | Description | Reference No. | Part No. | Description |
|---|---|---|---|---|---|
| 1 ~ 14 | RT3RN0090 | TK-308RR-N-0.9 | 5.6-2 | 016043 | TK-308RS Torch Body (w/ Tip Body) |
| RT3RN0100 | TK-308RR-N-1.0 | 7 | 016052 | TK-308RR Insulation Collar | |
| RT3RN0110 | TK-308RR-N-1.1 | 8 | 016053 | TK-308RR Inner Tube | |
| RT3RN0120 | TK-308RR-N-1.2 | 1 ~ 8 | 016058 | TK-308RR Torch Body Assy | |
| RT3RN0130 | TK-308RR-N-1.3 | 1 ~ 8 | 016045 | TK-308RS Torch Body Assy | |
| 1 | 002001 | N Tip 0.9 mm | 9 ~ 13 | 016N09 | 308RR/309R1-N Power Cable 0.9m |
| 002002 | N Tip 1.0 mm | 9 ~ 13 | 016N10 | 308RR/309R1-N Power Cable 1.0m | |
| 002003 | N Tip 1.2 mm | 9 ~ 13 | 016N11 | 308RR/309R1-N Power Cable 1.1m | |
| 2-1 | 001002 | N Nozzle 16 mm | 9 ~ 13 | 016N12 | 308RR/309R1-N Power Cable 1.2m |
| 2-2 | 001003 | N Nozzle 12 mm | 9 ~ 13 | 016N13 | 308RR/309R1-N Power Cable 1.3m |
| 3 | 003002 | N Orifice S | 10 | 016076 | 308RR-N-1.3 Liner |
| 4 | 004002 | N Insulator S | 016122 | 308RR-N-1.3 0.9 Liner | |
| 5 | 016051 | TKC-308RR Tip Body | 11 | 033701 | N/D Gas Hose Assy (w/ Push-In Air Fitting) |
| 6-1 | 016054 | TKC-308RR Torch Body (w/o Tip Body) | 12 | 033108 | Robotic Torch Cable Support |
| 6-2 | 016044 | TKC-308RS Torch Body (w/o Tip Body) | 13 | 031035 | Liner Clamping Screw M4 x 4 |
| 5.6-1 | 016050 | TK-308RR Torch Body (w/ Tip Body) | 14 | 033742 | Plug Cushioning Rubber TM-96-9 |
