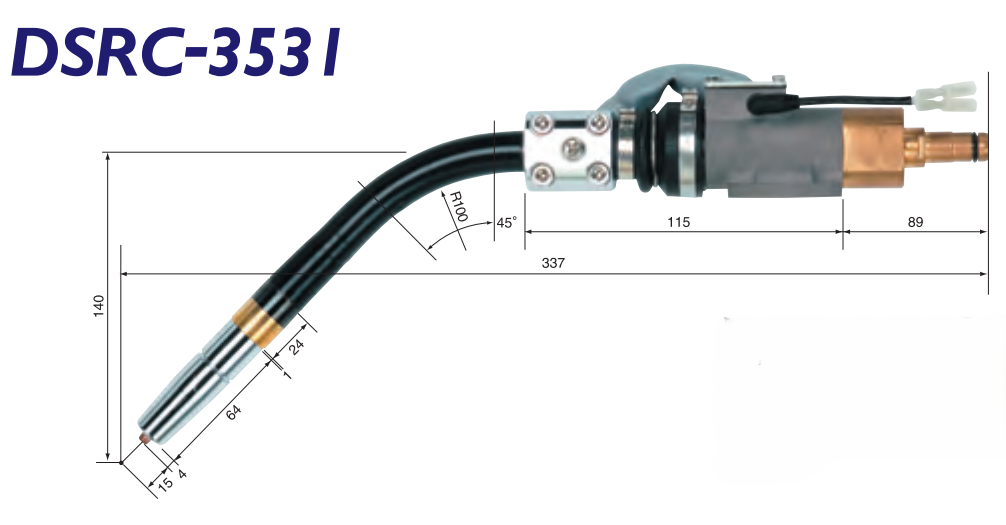

| Torch Model | DSRC-3531 | |
|---|---|---|
| Rated Current (CO2) | A | 350 |
| Rated Current (MAG) | A | 300 |
| Duty Cycle | % | 60 |
| Applicable Wire Size | mm | 0.8 – 1.2 |
| Cooling Method | Air-Cooled | |
| Reference No. | Part No. | Description |
|---|---|---|

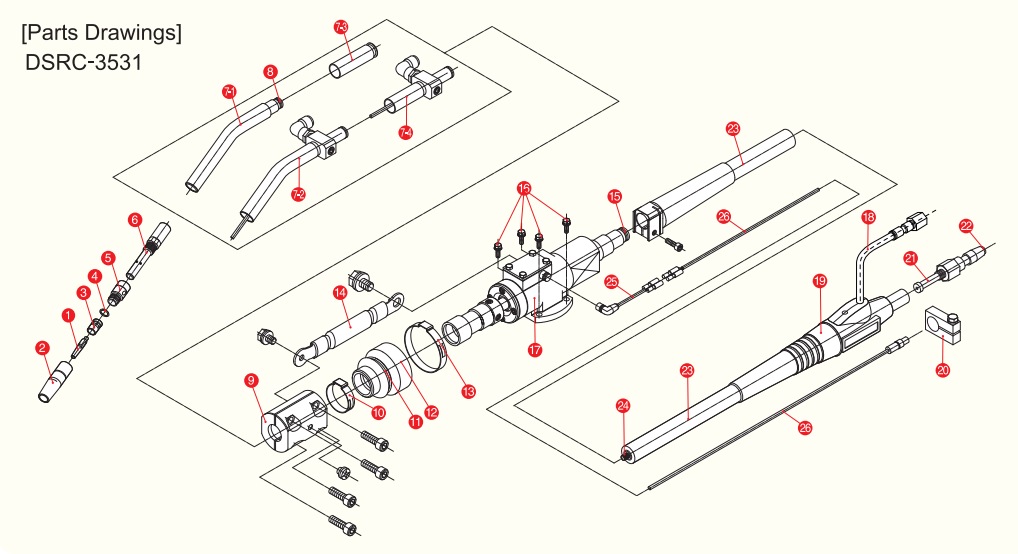

| 1 ~ 26 * | 023581 ~ 023589 | DSRC-3531-1.1 ~ DSRC-3531-2.5 |
| 1 | 023008 | D Tip 0.9 mm |
| 023009 | D Tip 1.0 mm | |
| 023010 | D Tip 1.2 mm | |
| 2 | 023501 | DSRC Nozzle |
| 3 | 023014 | D Orifice S |
| 4 | 023502 | DSRC-3531 Spring Washer |
| 5 | 023015 | D Insulator S |
| 6 | 023503 | DSRC-3531 Tip Body |
| 7-1,8 | 023504 | DSRC-3531 Torch Body (w/o Tip Body) |
| 7-2,8 | 023554 | DSRCB-3531 Torch Body (w/o Tip Body) |
| 7-3,8 | 023552 | DSR-3531 Torch Body (w/o Tip Body) |
| 7-4,8 | 023553 | DSRB-3531 Torch Body (w/o Tip Body) |
| 8 | 023505 | DSRC Torch Body O Ring |
| 1 ~ 8 | 023506 | DSRC-3531 Torch Body Assy |
| 9 | 023508 | DSRC Clamp Block |
| 10 | 3001024 | Hose Clamp 286-7R |
| 11 | YM0980009 | YMST-9800-09 Ring |
| 12 | YM0980012 | YMST-9800-12 Rubber Boot |
| 13 | 3001025 | Hose Clamp 455-7R |
| 14 | 3001023 | SRC Jumper Cable |
| 15 | Y0000FP10 | O Ring F-P10 |
| 16 | Hexagon Bolt x4 (M5 x 25) | |
| 9 ~ 17 | 023500 | DSRC Sensor Unit Assy |
| 1 ~ 17 | 023507 | DSRC-3531 Torch Assy |
| 18 | 033701 | N Gas Hose (with Push-in Air Fitting) |
| 19 | 033108 | Robotic Torch Cable Supporter |
| 20 | 023551 | DSRC-3531 P/C Attachment |
| 21 | 023022 | WT-64 Outlet Guide |
| 22 | 023023 | WT-64 Guide Adapter |
| 18 ~ 24 * | 023511 ~ 023519 | DSRC-3531-1.1 P/C ~ DSRC-3531-2.5 P/S |
| 24 * | 023531 ~ 023529 | DSRC-3531-1.1 PC ASSY ~ DSRC-3531-2.5 PC ASSY |
| 25 | 3001039 | YSRC Molded Cable |
| 26 * | 023571 ~ 023579 | DSRC Extension Cable 1.1 m ~ DSRC Shock Sensor Cable 2.5 m |
| 25 ~ 26 | 023561 ~ 023569 | DSRC Shock Sensor Cable 1.1 m ~ DSRC Shock Sebsor Cable 2.5 m |
