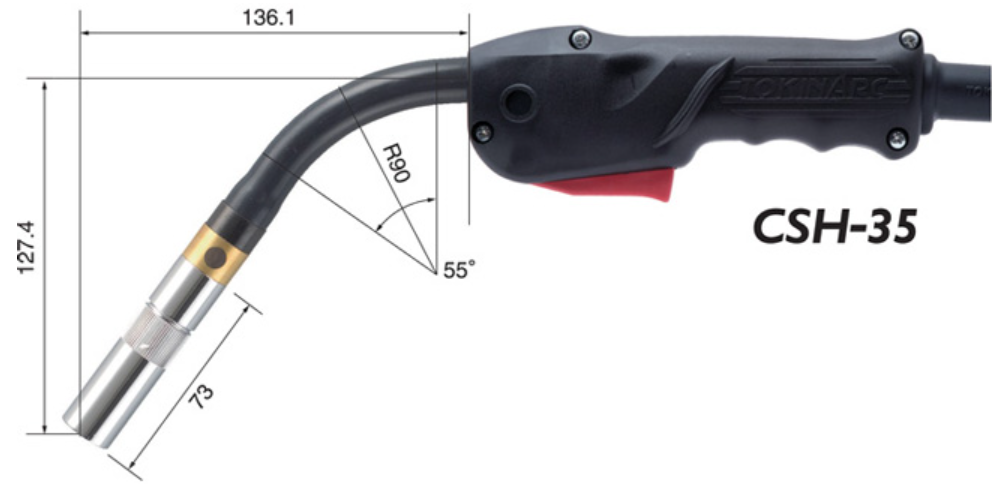

| Torch Model | CSH-35 | |
|---|---|---|
| Rated Current | A | 350 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (0.9,1.0,1.4) 1.2 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 2.4 |

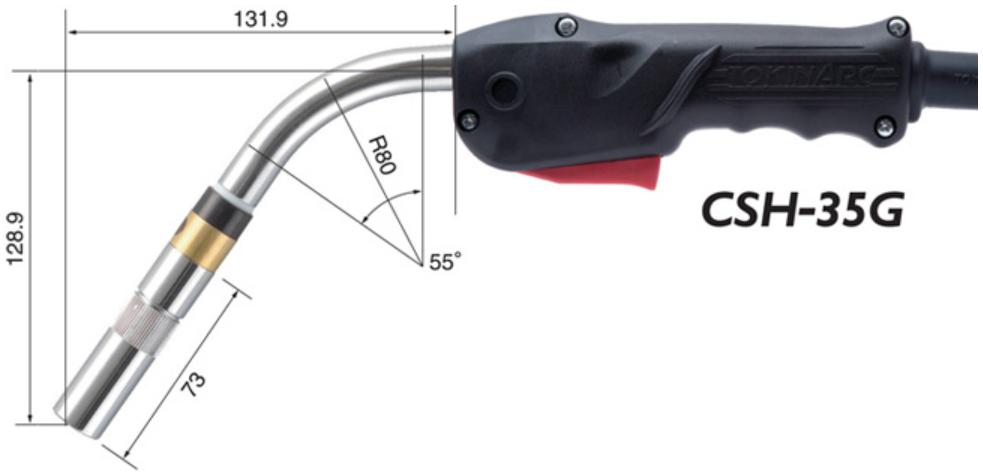

| Torch Model | CSH-35G | |
|---|---|---|
| Rated Current | A | 350 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (0.9,1.0,1.4) 1.2 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 2.4 |

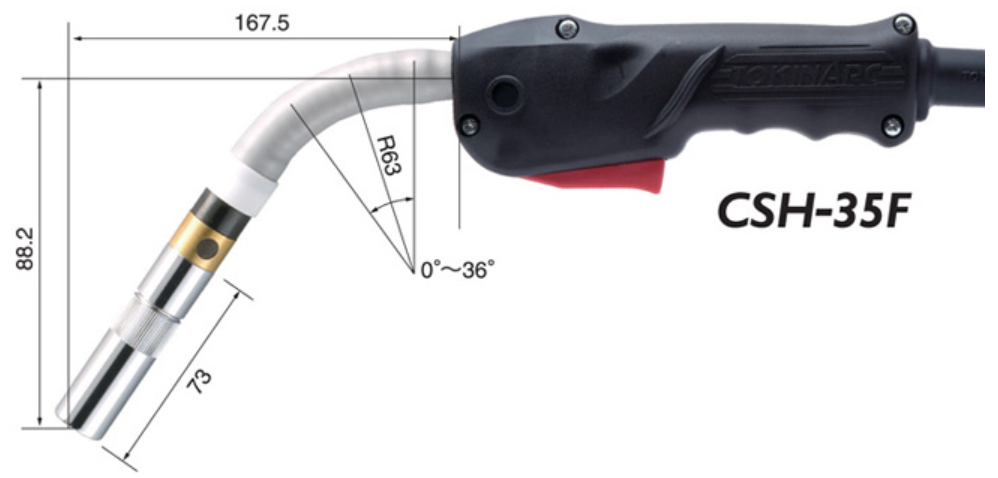

| Torch Model | CSH-35F | |
|---|---|---|
| Rated Current | A | 350 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (0.9,1.0,1.4) 1.2 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 2.4 |

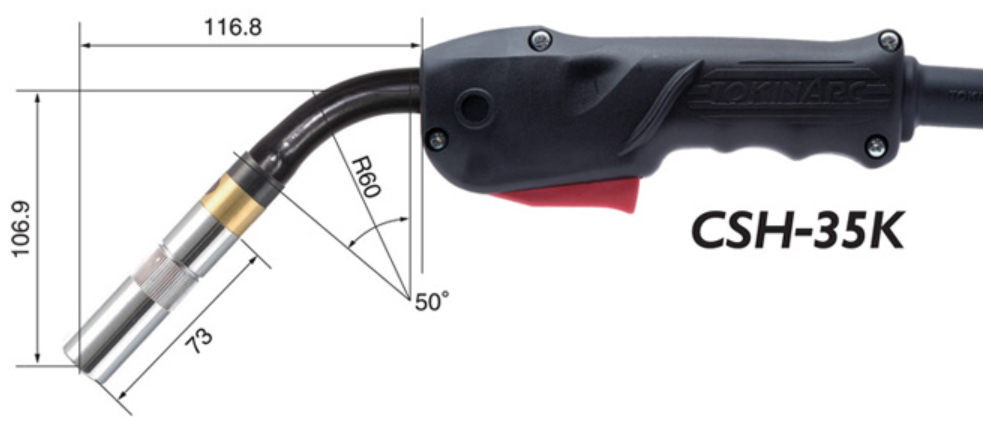

| Torch Model | CSH-35K | |
|---|---|---|
| Rated Current | A | 350 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (0.9,1.0,1.4) 1.2 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 2.4 |

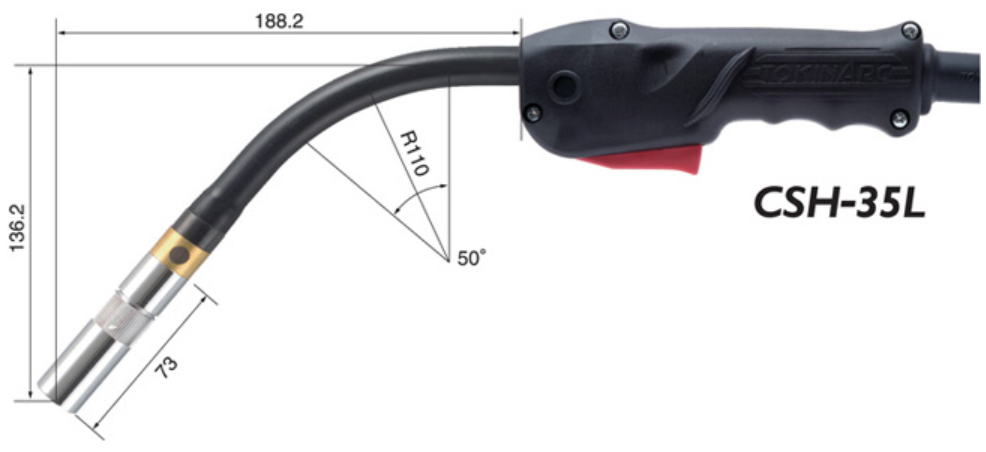

| Torch Model | CSH-35L | |
|---|---|---|
| Rated Current | A | 350 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (0.9,1.0,1.4) 1.2 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 2.4 |
| Torch Model | CSH-40 | |
|---|---|---|
| Rated Current | A | 450 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (1.4,1.6) 1.2 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 3 |
| Torch Model | CSH-40K | |
|---|---|---|
| Rated Current | A | 450 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (1.4,1.6) 1.2 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 3 |
| Torch Model | CSH-40F | |
|---|---|---|
| Rated Current | A | 450 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (1.4,1.6) 1.2 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 3 |

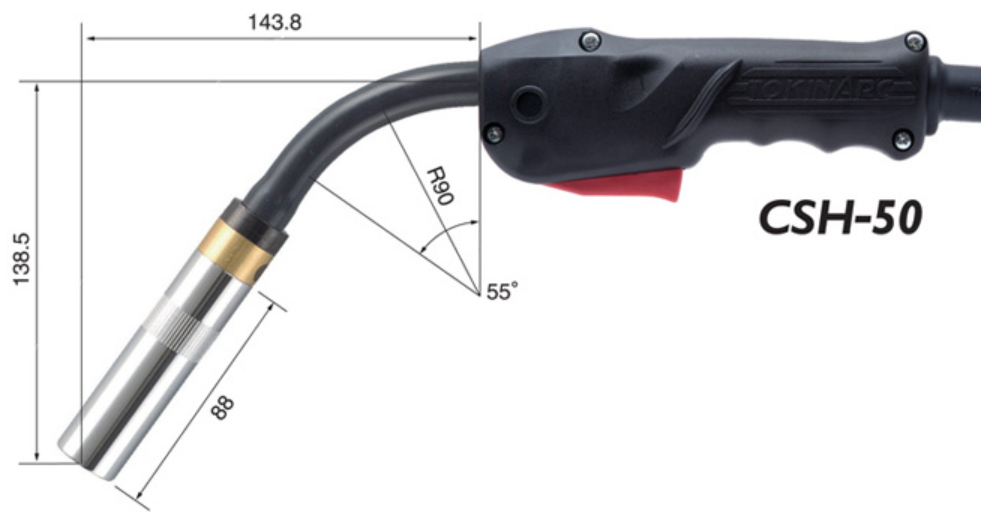

| Torch Model | CSH-50 | |
|---|---|---|
| Rated Current | A | 500 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (1.2,1.4) 1.6 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 3.6 |

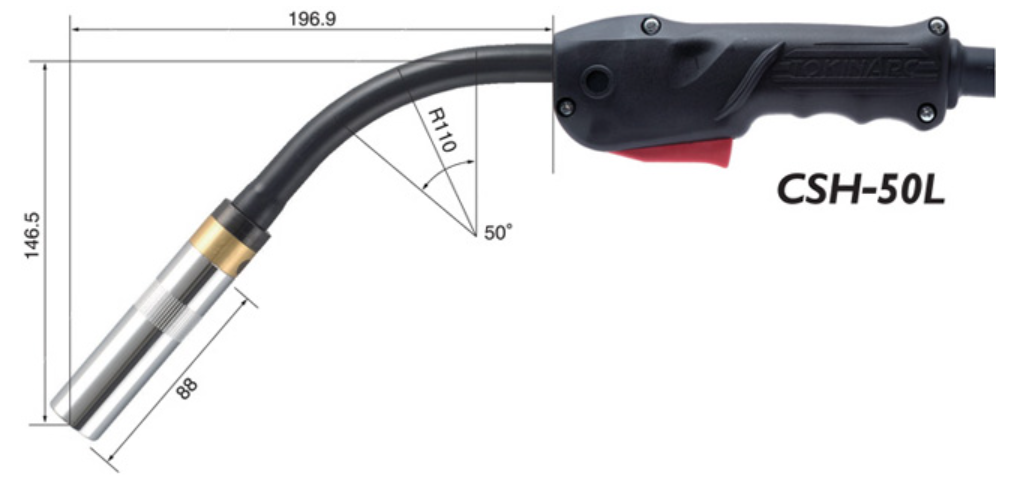

| Torch Model | CSH-50L | |
|---|---|---|
| Rated Current | A | 500 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (1.2,1.4) 1.6 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 3.6 |

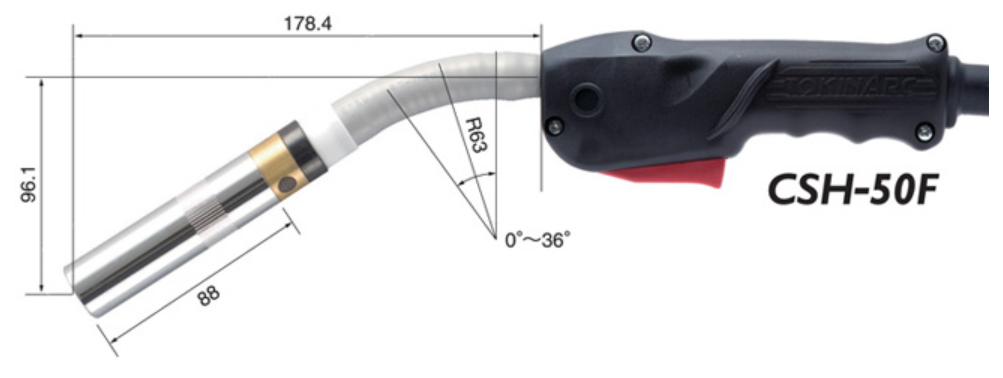

| Torch Model | CSH-50F | |
|---|---|---|
| Rated Current | A | 500 |
| Duty Cycle | %(CO2) | 60 |
| %(MAG) | 35 | |
| Applicable Wire Size | mm | (1.2,1.4) 1.6 |
| Cable Length | m | 3/4/4.5/5/6 |
| Cooling Method | Air-Cooled | |
| Total Weight | kg | 3.6 |
