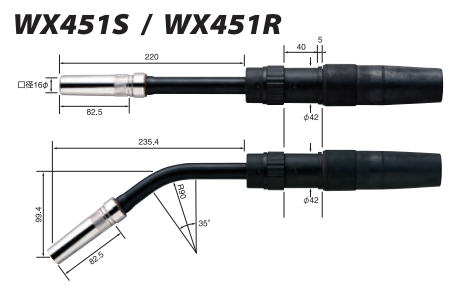

| Torch Model | WX451S/R | |
|---|---|---|
| Rated Current | A (CO2) | 500 |
| A (MAG) | 450 | |
| Duty Cycle | % (CO2) | 80 |
| % (MAG) | 70 | |
| Wire Diameter | mm | 1.2 – 1.6 |
| Cooling Method | Water-Cooled | |
| Cable Length | m | 1.5 |

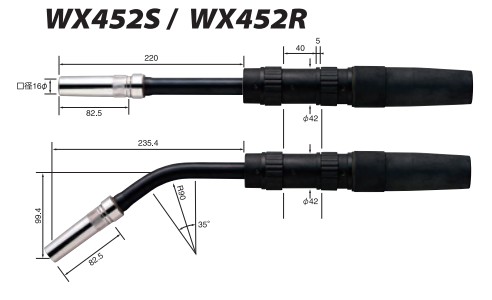

| Torch Model | WX452S/R | |
|---|---|---|
| Rated Current | A (CO2) | 500 |
| A (MAG) | 450 | |
| Duty Cycle | % (CO2) | 80 |
| % (MAG) | 70 | |
| Wire Diameter | mm | 1.2 – 1.6 |
| Cooling Method | Water-Cooled | |
| Cable Length | m | 1.5 |

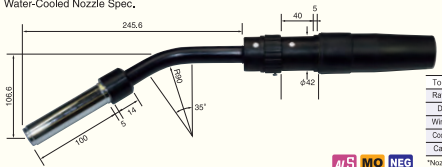

| Torch Model | WX451/452 AWS/R | |
|---|---|---|
| Rated Current | A (MIG) | 350 |
| Duty Cycle | % (MIG) | 50 |
| Wire Diameter | mm | 1.2 – 1.6 |
| Cooling Method | Water-Cooled | |
| Cable Length | m | 1.5 |

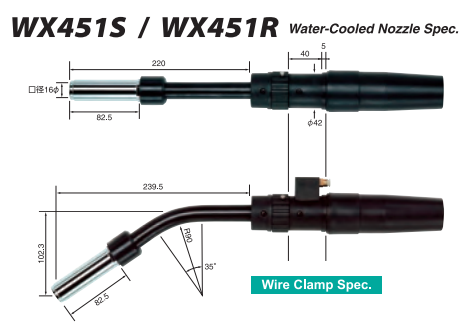

| Torch Model | WX4521 S Water-Cooled Nozzle | |
|---|---|---|
| Rated Current | A (CO2) | 500 |
| A (MAG) | 450 | |
| Duty Cycle | % (CO2) | 100 |
| % (MAG) | 100 | |
| Wire Diameter | mm | 1.2 – 1.6 |
| Cooling Method | Water-Cooled | |
| Cable Length | m | 1.5 |

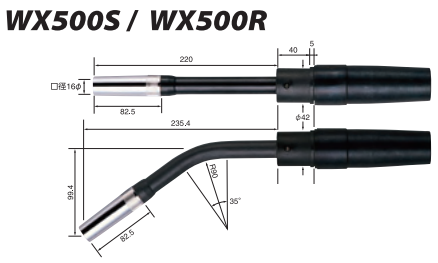

| Torch Model | WX500S/R | |
|---|---|---|
| Rated Current | A (CO2) | 500 |
| A (MAG) | 450 | |
| Duty Cycle | % (CO2) | 100 |
| % (MAG) | 100 | |
| Wire Diameter | mm | 1.2 – 1.6 |
| Cooling Method | Water-Cooled | |
| Cable Length | m | 1.5 |

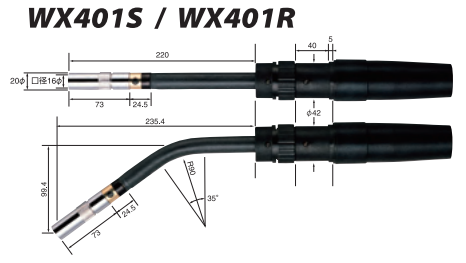

| Torch Model | WX401S/R | |
|---|---|---|
| Rated Current | A (CO2) | 500 |
| A (MAG) | 350 | |
| Duty Cycle | % (CO2) | 100 |
| % (MAG) | 100 | |
| Wire Diameter | mm | 1.2 – 1.6 |
| Cooling Method | Water-Cooled | |
| Cable Length | m | 1.5 |

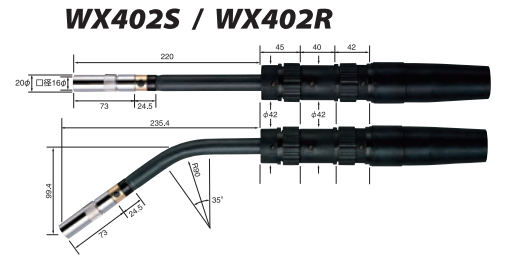

| Torch Model | WX402S/R | |
|---|---|---|
| Rated Current | A (CO2) | 500 |
| A (MAG) | 350 | |
| Duty Cycle | % (CO2) | 100 |
| % (MAG) | 100 | |
| Wire Diameter | mm | 1.2 – 1.6 |
| Cooling Method | Water-Cooled | |
| Cable Length | m | 1.5 |
