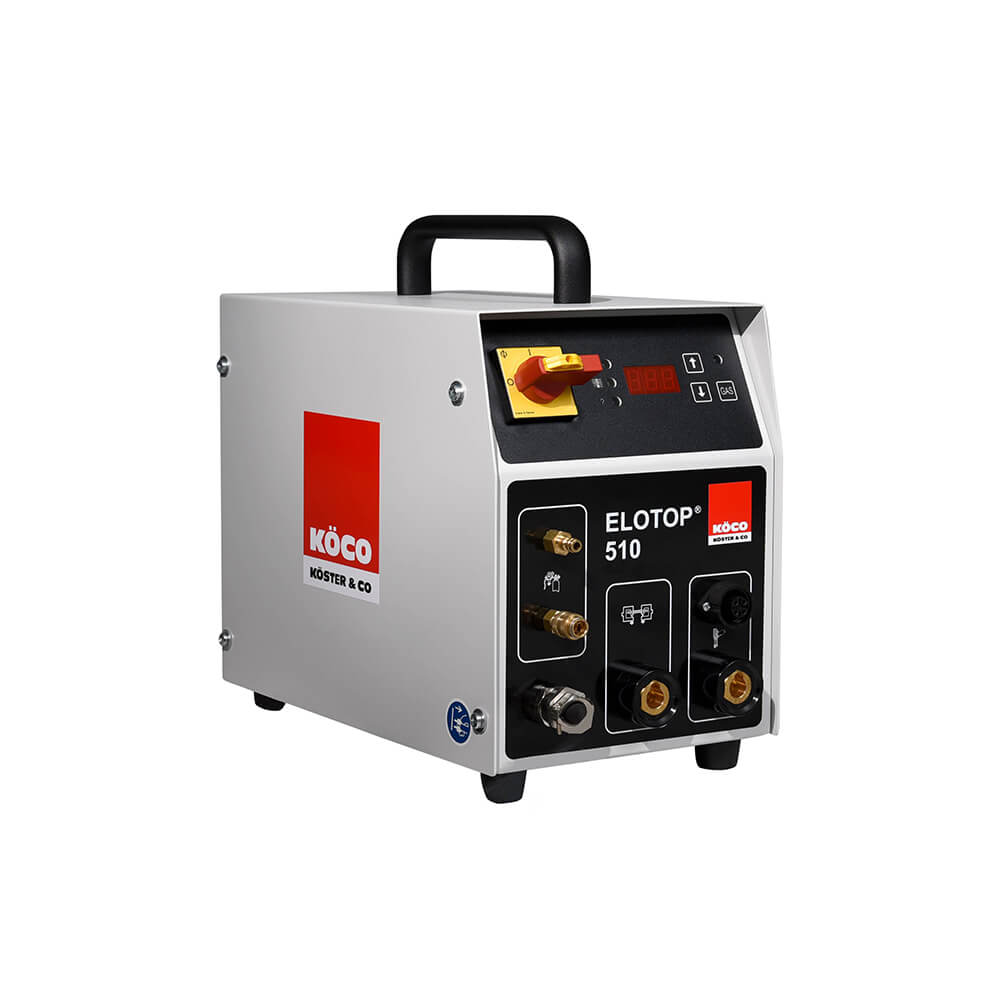

With our robust ELOTOP 510 every welding process super easy! The long-lasting welding machine is suitable for weldable stud ranges between 3-8 mm and allows a maximum current of 450 A. The time setting range of this lightweight machine is a maximum of 460 ms and, in addition to safe operation, also offers flexible application possibilities and a robust housing.
| Value | |
| Stud welding with ceramic ferrule, weldable stud range Ø (mm) | 3–8 |
| Short cycle stud welding, weldable stud range Ø (mm) | 3–6 |
| Stud welding with shielding gas, weldable stud range Ø (mm) | 3–8 |
| Max. current (A) | 450 |
| Time setting range (ms) | 20–460 |
| Max. stud/min. at … Ø (mm) | 15 /3 4/ 8 |
| Mains connection 50/60 Hz, 3-phase (V) | 400 |
| Mains plug at 400 V (A) | 32 |
| 4-wire mains cable at 400 V (m/mm²) | 5 /2,5 |
| Mains plug at 400 V (A) | 16 |
| Mains power consumption at …% ED (kVA) | ≈ 1 29 |
| Tolerance range mains voltage (%) | – 15 /+ 6 |
| Class of protection | IP 23 |
| Housing dimensions (L x B x H) mm | 375 x 220 x 360 |
| Weight (kg) | approx. 25 |
